JMT lithium ion battery HJTZ7S-FP-SWI
about 1/3 of the weight of the comparable lead-acid battery
Unbeatable ratio of cost savings / weight savings
Can be installed in any position as it contains no acid
very low self-discharge (maximum 5% per month)
Scope of delivery: 1 piece
Product features
Manufacturer: JMT
Manufacturer number: HJTZ7S-FP-SWI
Color: Black
Connection type: from the front from the top
Version: Lithium maintenance-free
Width: 69 mm
Power output: 29 Wh
Gas discharge: Without
Weight ready: 0.509 kg
Height: 85 105 125 mm
Length: 113 mm
Negative pole: front left
Plus pole: front right
Voltage: 12V
Japan code: HJTZ7S-FP
Capacity: 2.42 Ah
Vibration-proof: No.
Item description
Lithium-ion batteries from JMT, high-tech for your motorcycle.
The latest generation of batteries can be recognized by the red housing cover.

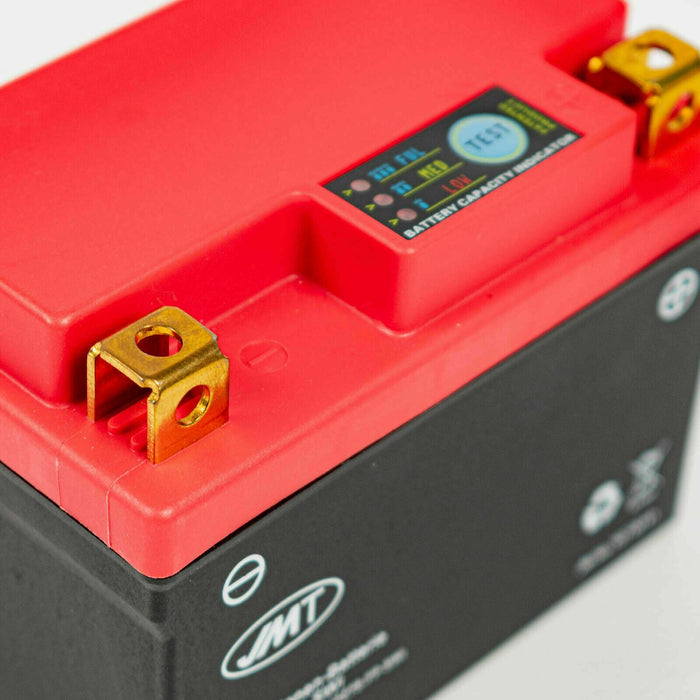

All batteries are equipped with a battery condition indicator.
Simply press the test button
If all 3 blue LEDs light up, the battery is fully (fully) charged
If only 2 LEDs light up, it is only half (med) charged
The battery must be charged at the latest when only one LED is on (low)
The following advantages speak for JMT lithium-ion batteries:
contains no heavy metals
balanced discharge / charge of all cells by balancer
Fast charging with high charging current possible (up to 90% in 6 minutes)
Good performance up to 60 ° C even at high temperatures
safe technology and long service life
Due to their specific properties, lead-acid batteries can only use 30% of their capacity, while lithium-ion batteries can use almost 100% of their capacity.
For this reason, the lithium versions of the JMT batteries require only 1/3 of the capacity of a comparable lead-acid battery for the same starting power.
A built-in processor ("balancer") also ensures that all cells are charged evenly.
With the help of adapters, the dimensions of the lithium-ion batteries correspond to the dimensions of the original lead-acid batteries.
The connections are also identical, which is why the battery can be replaced in a few minutes without further adjustments.
Please note that only suitable chargers may be used for charging. We recommend JMP chargers.
The manufacturer guarantees sufficient starting capacity down to -5 degrees Celsius.
12 V maintenance-free lithium-ion battery
Charging current recommended 1.0 A.
maximum charging current for quick charging 12 A
Comparable in dimensions and connections with yuasa manufacturer number:
YTZ7S
YTX7L-BS
TTZ7S
